| IMAGE SENSOR |
| Type | 36x 24 mm CMOS |
| Effective Pixels | Approx 21.1M |
| Total Pixels | Approx 22.0M |
| Aspect Ratio | 3:2 |
| Low-Pass Filter | Built in/Fixed |
| Sensor Cleaning | EOS integrated cleaning system with fluorine coating |
| Colour Filter Type | Primary Colour |
| |
| IMAGE PROCESSOR |
| Type | DIGIC 4 |
| | |
| LENS |

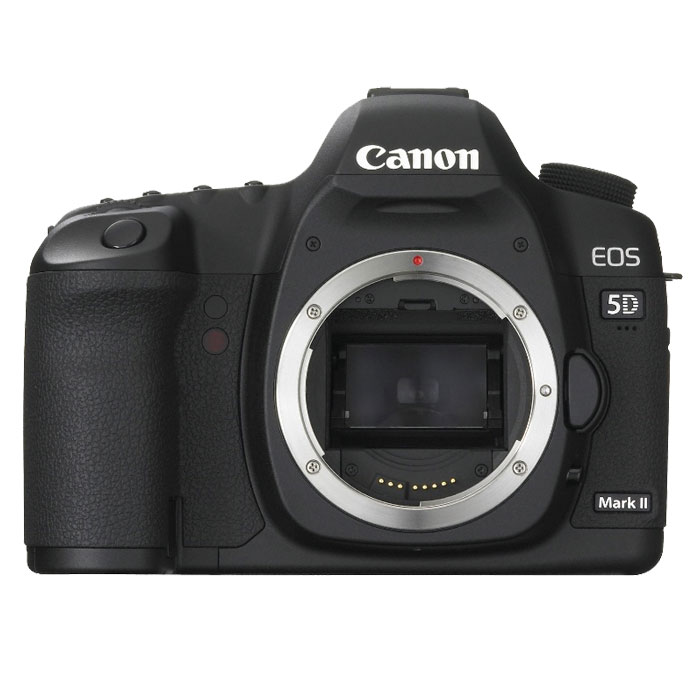

| Lens Mount | EF (excludes EF-S lenses) |
| Focal Length | Equivalent to 1.0x the focal length of the lens |
| | |
| FOCUSING |
| Type | TTL-CT-SIR with a CMOS sensor |
| AF System/ Points | 9-point AF (plus 6 Assist AF points) |
| AF Working Range | EV -0.5 - 18 (at 20°C & ISO 100) |
| AF Modes | One Shot
AI Servo
AI Focus |
| AF Point Selection | Automatic selection, Manual selection. |
| Selected AF Point Display | Superimposed in viewfinder and indicated on top LCD panel and Quick Control screen |
| Predictive AF | Yes, up to 8m ¹ |
| AF Lock | Locked when shutter button is pressed half way in One Shot AF mode. |
| AF Assist Beam | Emitted by an optional dedicated Speedlite |
| Manual Focus | Selected on lens |
| AF Microadjustment | C.Fn III-8
+/- 20 steps
Adjust all lenses by same amount
Adjust up to 20 lenses individually |
| | |
| EXPOSURE CONTROL |
| Metering Modes | TTL full aperture metering with 35 zone SPC (1) Evaluative metering (linked to any AF point) (2) Partial metering (approx. 8% of viewfinder at centre) (3) Spot metering: (approx. 3.5% viewfinder at center) (4) Center weighted average metering |
| Metering Range | EV 1-20 (at 20°C with 50mm f1.4 lens ISO 100) |
| AE Lock | Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes. |
| Exposure Compensation | +/-2 EV in 1/3 or 1/2 stop increments (can be combined with AEB). |
| AEB | +/- 2 EV, 1/2 or 1/3-stop increments |
| ISO Sensitivity* | Auto (100-3200), 100-6400 (in 1/3-stop or whole stop increments)
ISO can be expanded to H1: 12800 and H2:25600 |
| | |
| SHUTTER |
| Type | Electronically-controlled focal-plane shutter |
| Speed | 30 - 1/8000 sec. (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) |
| | |
| WHITE BALANCE |
| Type | Auto white balance with the imaging sensor |
| Settings | Auto, Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Colour Temperature setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9. |
| Custom White Balance | Yes, 1 setting can be registered |
| WB Bracketing | +/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias. |
| | |
| VIEWFINDER |
| Type | Pentaprism |
| Coverage | Approx. 98% |
| Magnification | Approx. 0.71x ¹ |
| Eyepoint | Approx. 21mm (from eyepiece lens centre) |
| Dioptre Correction | -3 to +1 (1/m) (dioptre) |
| Focusing Screen | Interchangeable (3 types, optional). Standard Focusing Screen Precision Matte Eg-A |
| Mirror | Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter) |
| Viewfinder Information | AF information: AF points, focus confirmation light.
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation.
Image information: White balance correction, CF card information, monochrome shooting, maximum burst (2 digit display), Highlight tone priority (D+). |
| Depth of Field Preview | Yes, with Depth of Field preview button. |
| Eyepiece Shutter | on strap |
| | |
| LCD MONITOR |

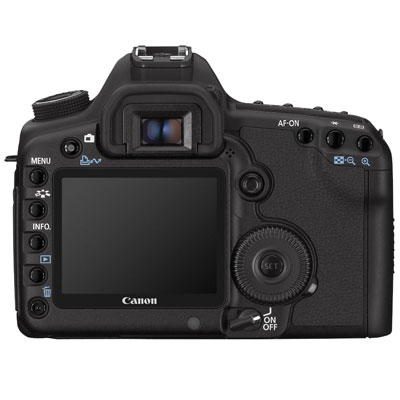

| Type | 3.0" Clear View TFT, approx. 920K dots |
| Coverage | Approx. 100% |
| Viewing Angle (Horizontally/Vertically) | Approx 170° |
| Coating | Dual Anti-reflection |
| Brightness Adjustment | Auto 3 levels + Manual adjustable to one of seven levels |
| Display Options | (1) Quick Control Screen
(2) Camera settings |
| | |
| FLASH |
| Modes | E-TTL Auto Flash |
| X-Sync | 1/200sec |
| Flash Exposure Compensation | +/-2 EV in 1/3-stop increments |
|
|
|
| Flash Exposure Lock | Yes |
| Second Curtain Synchronisation | Yes |
| HotShoe/ PC Terminal | Yes / Yes |
| External Flash Compatibility | E-TTL II with EX series Speedlites, wireless multi-flash support. |
| External Flash Control | via camera menu screen |
| | |
| SHOOTING |
| Modes | Auto (Stills and Movie), Creative Auto, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Custom (x3) |
| Picture Styles | Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3) |
| Colour Space | sRGB and Adobe RGB |
| Image Processing | Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination |
| Drive Modes | Single, Continuous, Self timer /remote control (10s), Self timer /remote control (2s) |
| Continuous Shooting | Max. Approx. 3.9fps. (speed maintained for up to 78 images (JPEG)¹³ (310 with UDMA card), 13 images (RAW)) ²³ |
| | |
| LIVE VIEW MODE |
| Type | Electronic viewfinder with image sensor |
| Coverage | Approx. 100% (horizontally and vertically) |
| Frame Rate | 30 fps |
| Focusing | Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Quick mode, Live mode, Live Face detection mode |
| Metering | Real-time evaluative metering with image sensor. Active metering time can be changed |
| Display Options | Grid overlay (x2), Histogram, data, no data |
| | |
| FILE TYPE |
| Still Image Type | JPEG: Fine, Normal (Exif 2.21 [Exif Print] compliant) / Design rule for Camera File system (2.0),
RAW: RAW, sRAW1, sRAW2 (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant |
| RAW+JPEG Simultaneous Recording | Yes, any combination of RAW + JPEG possible. |
| Image Size | JPEG: (L) 5616x3744, (M) 4080x2720, (S) 2784x1856
RAW: (RAW) 5616x3744, (sRAW 1) 3861x2574, (sRAW 2) 2784x1856 |
| Movie Type | MOV (Video: H.264, Sound: Linear PCM) |
|
| Movie Size | HD 1920 x 1080 (16:9), SD 640 x 480 (4:3) -30fps |
| Movie Length | Max duration 29m 59sec, Max file size 4GB |
| Folders | New folders can be manually created and selected |
| File Numbering | (1) Consecutive numbering
(2) Auto reset
(3) Manual reset |
| | |
| OTHER FEATURES |
| Custom Functions | 25 Custom Functions with 71 settings |
| Metadata Tag | User copyright information (set via EOS utility) |
| LCD Panel / Illumination | Yes / Yes |
| Water/ Dust Resistance | Yes ¹ |
|
|
|
| Playback Zoom | 1.5x - 10x |
| Display Formats | (1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Magnified view
(6) Jump display |
|
|
|
| Slide Show | Image selection: All images, by date, by folder, movies, or stills.
Playback time: 1/2/3/5 sec
Repeat: On/Off |
| Histogram | Brightness: Yes
RGB: Yes |
| Highlight Alert | Yes |
| Image Erase/Protection | Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time |
| Data Verification | Original image verification data can be appended to the image (OSK-E3 required for verification) |
| Menu Categories | (1) Shooting menu (x2)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu |
| Menu Languages | English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese |
| Firmware Update | Update possible by the user. |
|
|
|
|
|
|
| | |
| INTERFACE |
| Computer | USB 2.0 Hi-Speed (Mini-B) |

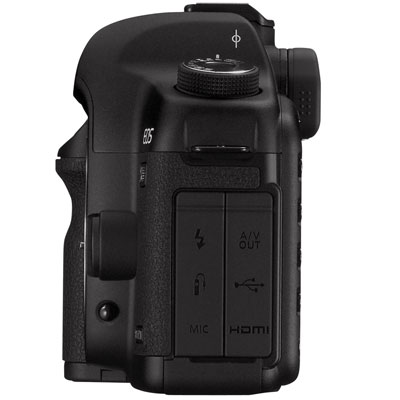

| Other | HDMI mini output, Video output (PAL/ NTSC), Microphone input, Extension system terminal (for WFT-E4) |
| | |
| DIRECT PRINT |
| Canon Printers | Canon Compact Photo Printers and PIXMA Printers supporting PictBridge |
| PictBridge | Yes |
| | |
| STORAGE |
| Type | CompactFlash Type I/ II (Microdrive compatible, UDMA compatible), external storage with WFT-E4 |
| | |
| SUPPORTED OPERATING SYSTEM |
| PC & Macintosh | XP (SP2/SP3) / Vista inc SP1 (excl. Starter Edition)
OS X v10.4-10.5 |
| | |
| SOFTWARE |
| Browsing & Printing | ZoomBrowser EX / ImageBrowser |
| Image Processing | Digital Photo Professional |
|
|
|
| Other | PhotoStitch, EOS Utility (inc. Remote Capture, WFT utility*), Picture Style Editor
* Requires optional accessory |
| | |
| POWER SOURCE |
| Batteries | Rechargeable Li-ion Battery LP-E6 (supplied), 1xCR1616 for date & settings |
| Battery Life | Approx. 850 (at 20°C) ¹
Approx. 750 (at 0°C) |
| Battery Indicator | 6 levels + percentage |
| Power Saving | Power turns off after 1, 2, 4, 8, 15 or 30mins. |
| Power Supply & Battery Chargers | AC Adapter Kit ACK-E6, Battery charger LC-E6E/LC-E6, Car Battery charger CBC-E6, Car Battery Cable CB-570 |
| | |
| PHYSICAL SPECIFICATIONS |
| Body Materials | Magnesium Alloy |
| Operating Environment | 0 – 40 °C, 85% or less humidity |
| Dimensions (WxHxD) | 152 x 113.5 x 75 |
| Weight (Body Only) | Approx. 810g |
| | |
| ACCESSORIES |
| Viewfinder | Eyecup Eb, E-series Dioptric Adjustment Lens with Rubber Frame Eb, Eyepiece Extender EP-EX15, Focusing Screens Eg, Angle Finder C |
| Wireless File Transmitter | Wireless File Transmitter WFT-E4 |
|
|
|
| Lenses | All EF lenses (excludes EF-S lenses) |
| Flash | Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2) |
| Battery Grip | BG-E6 |
| Remote Controller/ Switch | Remote control with N3 type contact, Wireless Controller LC-5, Remote Controller RC-1, Remote Controller RC-5 |
| Other | Hand Strap E2 |
| | |
Predictive AF | ¹ with EF300mm f/2.8L IS USM at 50kph
|
| Magnification | ¹ with 50mm lens at infinity, -1 (1/m) dpt
|
Continuous Shooting | ¹ Large/Fine(Quality 8) resolution
² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level |
Water/ Dust Resistance | ¹ Environmental protection
|
Battery Life | ¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated |
|
|
|
* Recommended Exposure Index |
