| IMAGE SENSOR |
| Type | 27.9mm x 18.6mm CMOS |
| Effective Pixels | Approx. 16.10 megapixels |
| Total Pixels | Approx. 17.00 megapixels |
| Aspect Ratio | 3.2
|
| Low-Pass Filter | Built-in/Fixed |
| Sensor Cleaning | EOS integrated cleaning system with fluorine coating |
| Colour Filter Type | Primary Colour |
| | |
IMAGE PROCESSOR |
| Type | Dual "DIGIC 4" |
| | |
| LENS |
| Lens Mount | EF (excludes EF-S lenses) |
| Focal Length | Equivalent to 1.3x the focal length of the lens |
| | |
FOCUSING |
| Type | TTL-AREA-SIR with a dedicated CMOS sensor |
| AF System/ Points | 45 Point / 39 f/2.8 cross-type AF points |
| AF Working Range | EV -1 - 18 (at 23°C & ISO100) |
| AF Modes | One Shot
AI Servo |
| AF Point Selection | Automatic selection: 45 point AF
Manual selection: Single point AF (45, 19, 11 or 9 points selectable)
Manual selection: Spot AF (with compatible lens)
Manual selection: AF point Expansion
AF points can be selected separately for vertical and horizontal shooting |
| Selected AF Point Display | Superimposed in viewfinder |
| Predictive AF | Yes, up to 8m ¹ |
| AF Lock | Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed. |
| AF Assist Beam | Emitted by optional dedicated Speedlite |
| Manual Focus | Selected on lens, default in Live View Mode |
| AF Microadjustment | C.Fn III-7
+/- 20 steps
Adjust all lenses by same amount
Adjust up to 20 lenses individually |
| | |
| EXPOSURE CONTROL |
| Metering Modes | TTL full aperture metering with 63 zone SPC
(1) Evaluative metering (linked to all AF point)
(2) Partial metering (approx. 13.5% of viewfinder at centre)
(3) Spot metering:
Center spot metering (approx. 3.8% viewfinder
AF point-linked spot metering (approx. 3.8% of viewfinder)
Multi/Spot metering (Max 8 spot metering entries) |
| Metering Range | EV 0 - 20 (at 23°C with 50mm f/1.4 lens ISO100) |
| AE Lock | Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in P, TV and AV modes. |
| Exposure Compensation | +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB). |
| AEB | 2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments |
| ISO Sensitivity* | Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments)
ISO can be expanded to L: 50, H1: 25600, H2: 51200, H3 102400 |
| | |
| SHUTTER |
| Type | Electronically-controlled focal-plane shutter |
| Speed | 30-1/8000 sec (1/2 or 1/3 stop increments) + Bulb (Shutter speed range available varies according to shooting mode) |
| | |
| WHITE BALANCE |
| Type | Auto white balance with the imaging sensor |
| Settings | AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9. |
| Custom White Balance | Yes, 5 setting can be registered |
| WB Bracketing | +/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias. |
| |
| VIEWFINDER |
| Type | Pentaprism |
| Coverage | Approx. 100% |
| Magnification | Approx. 0.76x ¹ |
| Eyepoint | Approx. 20mm (from eyepiece lens centre) |
| Dioptre Correction | -3 to +1 (1/m) (dioptre) |
| Focusing Screen | Interchangeable (12 types, optional). Standard Focusing Screen Ec-C IV |
| Mirror | Quick-return half mirror (Transmission: reflection ratio of 37:63, no mirror cut-off with EF1200mm f/5.6 or shorter) |
| Viewfinder Information | AF information: AF points, focus confirmation light.
Exposure information: Metering mode, spot metering area, shutter speed, aperture, manual exposure, AE lock, ISO speed, exposure level, exposure warning
Flash information: Flash ready, FP flash, FE lock, flash exposure level
Image information: JPEG recording, RAW recording, number of remaining shots, maximum burst (2 digit display), highlight tone priority(D+), White balance correction, memory card information, battery check icon. |
| Depth of Field Preview | Yes, with Depth of Field preview button. |
| Eyepiece Shutter | Built in |
| | |
| LCD MONITOR |
| Type | 3.0" Clear View II TFT, approx. 920K dots |
| Coverage | Approx. 100% |
| Viewing Angle | Approx. 160° |
| Coating | Anti-reflection and Solid Structure |
| Brightness Adjustment | Adjustable to one of seven levels |
| Display Options | Camera settings |
| | |
| FLASH |
| Modes | E-TTL II Auto Flash, Metered Manual |
| X-Sync | 1/300sec (EX series Speedlites only) |
| Flash Exposure Compensation | +/- 3EV in 1/2 or 1/3 increments |
| Flash Exposure Bracketing | Yes, with compatible External Flash |
| Flash Exposure Lock | Yes |
| Second Curtain Synchronisation | Yes |
| HotShoe/ PC Terminal | Yes/Yes |
| External Flash Compatibility | E-TTL II with EX series Speedlites, wireless multi-flash support |
| External Flash Control | via camera menu screen |
| | |
| SHOOTING |
| Modes | Program AE, Shutter priority AE, Aperture priority AE, Manual |
| Picture Styles | Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3) |
| Colour Space | sRGB and Adobe RGB |
| Image Processing | Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination |
| Drive Modes | Single, Continuous L, Continuous H, Self timer (2s+remote, 10s+remote), Silent single shooting |
| Continuous Shooting | Max. Approx. 10fps. (speed maintained for up to 121 images (JPEG)¹³ or 28 images (RAW))² (with UDMA card)³ |
| | |
| LIVE VIEW MODE |
| Type | Electronic viewfinder with image sensor |
| Coverage | Approx. 100% (horizontally and vertically) |
| Frame Rate | 30 fps |
| Focusing | Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Quick mode, Live mode, Live Face detection mode |
| Metering | Real-time evaluative metering with image sensor
Active metering time can be changed |
| Display Options | Grid overlay (x2), Histogram, Aspect ratios |
| | |
| FILE TYPE |
| Still Image Type | JPEG: 10 compression options (Exif 2.21 [Exif Print] compliant) / Design rule for Camera File system (2.0),
RAW: RAW, sRAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant |
| RAW+JPEG Simultaneous Recording | Yes, any combination of RAW + JPEG possible, separate formats to separate cards possible |
| Image Size | JPEG: (L) 4896x3264, (M1) 4320x2880, (M2) 3552x2368, (S) 2448x1632
RAW: (RAW) 4896x3264, (M-RAW) 3672x2448, (S-RAW) 2448x1632 |
| Movie Type | MOV (Video: H.264, Sound: Linear PCM) |
| Movie Size | 1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (59.94, 50 fps) |
| Movie Length | Max duration 29min 59sec, Max file size 4GB |
| Folders | New folders can be manually created and selected |
| File Numbering | (1) Consecutive numbering
(2) Auto reset
(3) Manual reset |
| | |
| OTHER FEATURES |
| Custom Functions | 62 Custom Functions with 177 settings |
| Metadata Tag | User copyright information (can be set in camera) |
| LCD Panel / Illumination | Yes / Yes |
| Water/ Dust Resistance | Yes |
| Sound Memo | Up to 30sec per image |
| Intelligent Orientation Sensor | Yes |
| Playback Zoom | 1.5x - 10x |
| Display Formats | (1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Magnified view
(6) Movie edit |
| Slide Show | Image selection: All images, by Date, by Folder, Movies, Stills
Playback time: 1/2/3/5 seconds
Repeat: On/Off |
| Histogram | Brightness: Yes
RGB: Yes |
| Highlight Alert | Yes |
| Image Erase/Protection | Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time |
| Data Verification | Original image verification data and encryption can be appended to the image (OSK-E3 required for verification + encryption/decryption) |
| Menu Categories | (1) Shooting menu (x2)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu |
| Menu Languages | English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese |
| Firmware Update | Update possible by the user. |
| | |
| INTERFACE |
| Computer | Hi-Speed USB |

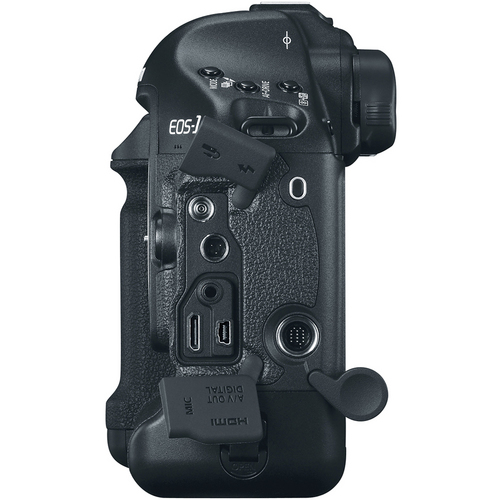

| Other | HDMI mini output, Video output (PAL/ NTSC), Extension system terminal (for WFT-E2/ WFT-E2 II), External microphone (Stereo mini jack) |
| | |
| DIRECT PRINT |
| Canon Printers | Canon Compact Photo Printers and PIXMA Printers supporting PictBridge |
| PictBridge | Yes |
| | |
| STORAGE |
| Type | CompactFlash Type I/ II (Microdrive compatible, UDMA compatible), SDHC, SD memory (up to 2GB), External Media (with Wireless File Transmitter WFT-E2 and WFT-E2 II only). |
| | |
| SUPPORTED OPERATING SYSTEM |
| PC & Macintosh | Windows XP (SP2/SP3) / Vista inc SP1 (excl. Starter Edition)
OS X v10.4-10.5 |
| | |
| SOFTWARE |
| Browsing & Printing | ZoomBrowser EX / ImageBrowser |
| Image Processing | Digital Photo Professional |
| Other | PhotoStitch, EOS Utility (inc. Remote Capture, WFT utility*), Picture Style Editor
* Requires optional accessory |
| | |
| POWER SOURCE |
|
| Batteries | Rechargeable Li-ion Battery LP-E4 (supplied), 1xCR2025 for date & settings |
| Battery Life | Approx. 1500 (at 23°C)¹
Approx. 1200 (at 0°C) |
| Battery Indicator | 6 levels + percentage |
| Power Saving | Power turns off after 1, 2, 4, 8, 15, 30mins or Off. |
| Power Supply & Battery Chargers | AC Adapter Kit ACK-E4, Battery charger LC-E4, Car Battery charger cable CB-570 (use with LC-E4) |
| | |
| PHYSICAL SPECIFICATIONS |
| Body Materials | Magnesium Alloy body covers |
| Operating Environment | 0 – 45 °C, 85% or less humidity |
| Dimensions (WxHxD) | 156 x 156.6 x 79.9mm |
| Weight (Body Only) | Approx. 1180g |
| | |
| ACCESSORIES |
| Viewfinder | Eyecup Eg, Eg-series Dioptric Adjustment Lens with Rubber Frame Eg, Anti Fog Eyepiece Eg, Focusing Screens Ec, Angle Finder C |
| Wireless File Transmitter | Wireless File Transmitter WFT-E2¹, WFT-E2 II |
| Lenses | All EF lenses (excludes EF-S lenses) |
| Flash | Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2) |
| Remote Controller/ Switch | Remote control with N3 type contact, Wireless Controller LC-5 |
| Other | Hand Strap E2 |
| | |
Predictive AF | ¹ With EF300mm f/2.8L IS USM at 50kph |
Magnification | ¹ With 50mm lens at infinity, -1(1/m) dpt |
Continuous Shooting | ¹ Large resolution JPEG quality setting 8
² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level |
Battery Life | ¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated |
Wireless File Transmitter | ¹ Firmware update required |
* Recommended Exposure Index |
|
