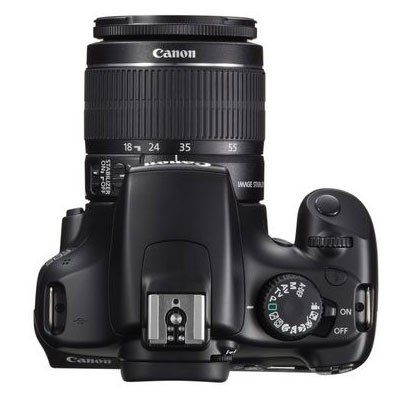

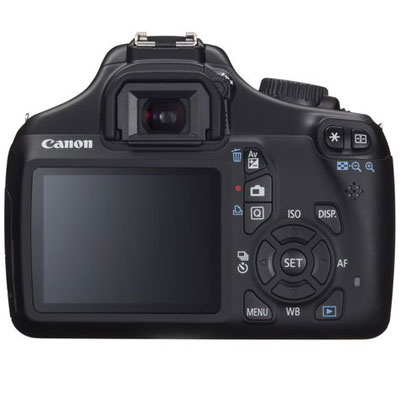

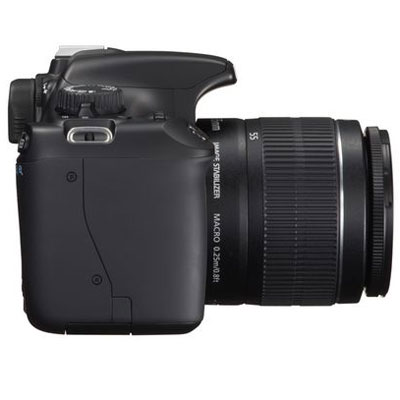

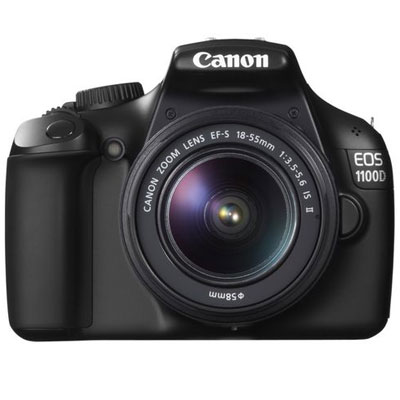

Canon EOS 1100D Digital SLR Camera and 18-55mm IS Mark II Lens Kit

22.2 x 14.7mm CMOS

Approx. 12.2M

Approx. 12.6M

3:2

Built-in/Fixed with fluorine coating

Manual cleaning and Dust Delete Data acquisition

Primary Colour

DIGIC 4

EF/EF-S

Equivalent to 1.6x the focal length of the lens

TTL-CT-SIR with a CMOS sensor

9 AF points (f/5.6 cross type at centre)

EV 0 - 18 (at 23°C & ISO100)

AI Focus
One Shot
AI Servo

Automatic selection, Manual selection

Superimposed in viewfinder and indicated on LCD monitor

Yes, up to 10m¹

Locked when shutter button is pressed half way in One Shot AF mode

Intermittent firing of built-in flash or emitted by optional dedicated Speedlite

Selected on lens, default in Live View Mode

No

TTL full aperture metering with 63-zone SPC
(1) Evaluative metering (linked to all AF points)
(2) Partial metering at center (approx. 10% of viewfinder)
(3) Center weighted average metering

EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB)

3 shots +/- 2 EV, 1/2 or 1/3-stop increments

AUTO (100-6400), 100-6400 (in 1-stop increments)

Electronically-controlled focal-plane shutter, with electronic first curtain

30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Auto white balance with the imaging sensor

AWB, Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom. White balance compensation: 1. Blue/Amber +/-9 2. Magenta/Green +/-9

Yes, 1 setting can be registered

+/-3 levels in single level increments 3 bracketed images per shutter release. Selectable Blue/Amber bias or Magenta/ Green bias

Pentamirror

Approx. 95%

Approx. 0.80x¹

Approx. 21mm (from eyepiece lens center)

-2.5 to +0.5 m-1 (dioptre)

Fixed

Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)

AF information: AF points, focus confirmation light Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light Image information: Highlight tone priority (D+), monochrome shooting, maximum burst (1 digit display), White balance correction, SD card information

Yes, assigned to SET button with C.Fn-8-5

On strap

6.8cm (2.7") TFT, approx. 230k dots

Approx. 100%

Approx 170°

Adjustable to one of seven levels

(1) Quick Control Screen (2) Camera settings

9,2

Up to 17mm focal length (35mm equivalent: 27mm)

Approx. 2 seconds

Auto, Manual Flash On/off

Yes - with red eye reduction lamp

1/200sec

+/- 2EV in 1/2 or 1/3 increments

Yes, with compatible External Flash

Yes

Yes

Yes/ -

E-TTL II with EX series Speedlites, wireless multi-flash support

Via camera menu screen

Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, No Flash, Creative Auto, Program AE , Shutter priority AE, Aperture priority AE, Manual, A-DEP

Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

sRGB and Adobe RGB

Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings) Auto Correction of Lens Peripheral illumination Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)

Single, Continuous, Self timer (2s, 10s, 10s + continuous shots 2-10)

Max. JPEG Approx. 3fps for approx. 830 images¹³ Max. RAW Approx 2fps for up to approx. 5 images²³

Electronic viewfinder with image sensor

Approx. 100% (horizontally and vertically)

30 fps

Manual Focus (Magnify the image 5x or 10x at any point on screen) Autofocus: Quick mode, Live mode

Real-time evaluative metering with image sensor Active metering time can be changed

Grid overlay, Histogram

JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0), RAW: RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant

Yes, RAW + Large JPEG

JPEG: (L) 4272x2848, (M) 3088x2056, (S1) 2256x1504, (S2) 1920x1280, (S3) 720x480 RAW: 4272x2848

MOV (Video: H.264, Sound: Linear PCM)

1280 x 720 (29.97, 25 fps)

Max duration 17min, Max file size 4GB

New folders can be manually created and selected

(1) Consecutive numbering (2) Auto reset (3) Manual reset

10 Custom Functions with 32 settings

User copyright information (can be set in camera) Image rating (0-5 stars)

Yes

1.5x - 10x enabled in 15steps

(1) Single image with information (2 levels) (2) Single image (3) 4 image index (4) 9 image index (5) Jump Display

Autoplay: All images, repeat

Brightness: Yes RGB: Yes

Yes (Shooting information display only)

Erase: Single image, Checkmarked images, Unprotected images Protection: Erase protection of one image at a time

(1) Shooting menu (x4)

(2) Playback menu (x2)

(3) Setup menu (x3)

(4) My Menu

English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Update possible by the user.

Hi-Speed USB

Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible)

Canon SELPHY Printers, Bubble Jet Printers with the direct print function and PIXMA Printers supporting PictBridge

Yes

SD card, SDHC card or SDXC card

Windows XP inc SP3 / Vista inc SP1 and SP2 (excl. Starter Edition) / 7 (excl. Starter Edition) OS X v10.5-10.6

ZoomBrowser EX / ImageBrowser

Digital Photo Professional

PhotoStitch, EOS Utility (inc. Remote Capture), Picture Style Editor

1 x Rechargeable Li-ion Battery LP-E10

Approx. 700 (at 23°C, AE 50%, FE 50%)¹

Approx. 650 (at 0°C, AE 50%, FE 50%)

4 levels

Power turns off after 30sec or 1, 2, 4, 8 or 15mins.

AC Adapter Kit ACK-E10, Battery charger LC-E10, LC-E10E

Stainless Steel and polycarbonate resin with conductive fiber

0 – 40 °C, 85% or less humidity

129.9 x 99.7 x 77.9 mm

Approx. 495g (CIPA testing standard, including battery and memory card)

Eyecup Ef, E-series Dioptric Adjustment Lens with Rubber Frame Ef, Eyepiece Extender EP-EX15II, Angle Finder C

Semi-Hard Case EH19-L

Compatible with Eye-Fi cards

All EF and EF-S lenses

Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2)

None

Remote Switch RS-60E3

Hand Strap E2

¹ Large/Fine(Quality 8) resolution

² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.

³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
