IMAGE SENSOR |
Type: | 1/2.3 type back-illuminated CMOS |
Effective Pixels: | Approx. 12.1M |
Colour Filter Type: | Primary Colour |
IMAGE PROCESSOR |
Type: | DIGIC 5 with iSAPS technology |

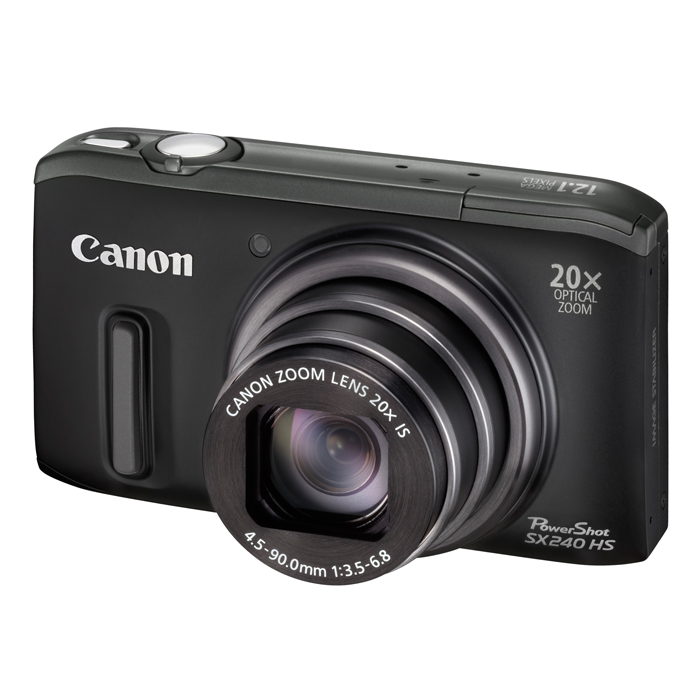

LENS |
Focal Length: | 4.5 – 90.0 mm (35 mm equivalent: 25 – 500 mm) |
Zoom: | Optical 20x ZoomPlus 39x Digital Approx. 4.0x (with Digital Tele-Converter Approx. 1.5x or 2.0x and Safety Zoom¹). Combined Approx. 80x |
Maximum f/number: | f/3.5 – f/6.8 |
Construction: | 12 elements in 10 groups (1 UA lens, 2 double-sided aspherical lens) |
Image Stabilisation: | Yes (lens shift-type), 4-stop. Intelligent IS |
FOCUSING |
Type: | TTL |
AF System/ Points: | Face Detection, 1-point AF (fixed to centre) |
AF Modes: | Single, Continuous, Servo AF/AE, Tracking AF |
AF Point Selection: | Size (Normal, Small) |
AF Lock: | On/Off Selectable |
AF Assist Beam: | Yes |
Manual Focus: | Yes |
Closest Focusing Distance: | 5 cm (W) from front of lens in macro |
EXPOSURE CONTROL |
Metering modes: | Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (Centre) |
AE Lock: | On/Off Selectable |
Exposure Compensation: | +/- 2 EV in 1/3 stop increments. i-Contrast for automatic dynamic range correction |
ISO sensitivity*: | AUTO, 100, 200, 400, 800, 1600, 3200 |
SHUTTER |
Speed: | 1 – 1/3200 sec. (factory default) 15 – 1/3200 sec. (total range – varies by shooting mode) |
WHITE BALANCE |
Type: | TTL |
Settings: | Auto (including Face Detection WB), Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Underwater, Custom. Multi-area WB correction available in Smart Auto |
LCD MONITOR |

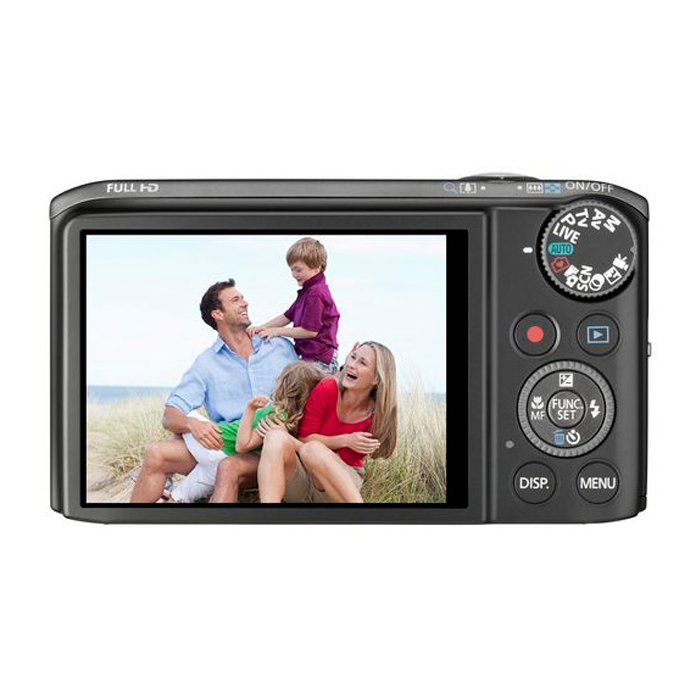

Monitor: | 7.5 cm (3.0”) PureColor II G (TFT). Approx. 461,000 dots |
Coverage: | Approx. 100% |
Brightness: | Adjustable to one of five levels. Quick-bright LCD |
FLASH |
Modes: | Auto, Manual Flash On / Off, Slow Synchro |
Slow Sync Speed: | Yes. Fastest speed 1/2000 sec. |
Red-Eye Reduction: | Yes |
Flash Exposure Compensation: | +/- 2 EV in 1/3 stop increments. Face Detection FE, Safety FE, Smart Flash Exposure |
Flash Exposure Lock: | Yes |
Manual Power Adjustment: | 3 levels with internal flash |
Second Curtain Synchronisation: | 50 cm – 3.5 m (W) / 1.0 m – 2.0 m (T) |
External Flash: | Canon High Power Flash HF-DC2 |
SHOOTING |
Modes: | Smart Auto (58 scenes detected), Program AE, Shutter priority AE, Aperture priority AE, Manual, Live View Control, Easy, Movie Digest, SCN (Portrait, Smooth Skin, Smart Shutter (Smile, Wink Self-Timer, FaceSelf-Timer), High-speed Burst HQ, Handheld Night Scene, Low Light (3.0MP), Underwater, Snow, Fireworks, Stitch Assist), Creative Filter (Fish-eye Effect, Miniature Effect, Toy Camera Effect, Soft Focus, Monochrome, Super Vivid, Poster Effect, Color Accent, Color Swap), Discreet, Movie |
Modes in Movie: | Smart Auto (21 scenes detected), Program AE, Portrait, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Color Accent, Color Swap, Live View Control, Underwater, Snow, Fireworks, iFrame Movie, Super Slow Motion Movie |
Photo Effects: | My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color) |
Drive modes: | Single, Auto drive, Continuous, Continuous with AF, Self-Timer |
Continuous Shooting: | Approx. 2.4 shots/sec., AF: Approx. 0.8 shots/sec., LV: Approx. 0.9 shots/sec., High-speed Burst HQ: Approx. 10.3 shots/sec., up to 10 shot |
RECORDING PIXELS / COMPRESSION |
Image Size: | 4:3 - (L) 4000 x 3000, (M1) 2816 x 2112, (M2) 1600 x 1200, (S) 640 x 480 16:9 - (L) 4000 x 2248, (M1) 2816 x 1584, (M2) 1920 x 1080, (S) 640 x 360 3:2 - (L) 4000 x 2664, (M1) 2816 x 1880, (M2) 1600 x 1064, (S) 640 x 424 1:1 - (L) 2992 x 2992, (M1) 2112 x 2112, (M2) 1200 x 1200, (S) 480 x 480 Resize in playback (M2, S, XS) *XS is half the length and width of S |
Compression: | Superfine, Fine |
Movies: | (Full HD) 1920 x 1080, 24 fps, (HD) 1280 x 720, 30 fps, (L) 640 x 480, 30 fps Super Slow Motion Movie (L) 640 x 480, 120fps, (M) 320 x 240, 240fps Miniature Effect (HD, L) 6fps, 3fps, 1.5 fps iFrame Movie (HD) |
Movie Length: | (Full HD & HD) Up to 4 GB or 29 min. 59 sec. (L) Up to 4 GB or 1 hour (Super Slow Motion Movie) 30 sec. |
FILE TYPES |
Still Image Type: | JPEG compression, (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant |
Movies: | MOV [H.264 + Linear PCM (stereo)] iFrame |
DIRECT PRINT |
Canon Printers: | Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge (ID Photo Print, Fixed Size Print and Movie Print supported on SELPHY CP & ES printers only) |
PictBridge: | Yes |
OTHER FEATURES |
Red-Eye Correction: | Yes, during shooting and playback |
My Camera / My Menu: | Start-up image and camera sounds customisation |
My Category: | Image tagging feature |
Intelligent Orientation Sensor: | Yes |
Histogram: | Yes |
Playback zoom: | Approx. 2x – 10x |
Self Timer: | Approx. 2 or 10 sec. or Custom |
Menu Languages: | English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified Chinese, Chinese (traditional), Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Ukrainian, Romanian, Farsi, Malaysian,Indonesian, Vietnamese |
INTERFACE |
Computer: | Hi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible) |
Other: | HDMI Mini Connector (HDMI-CEC compatible), A/V output (PAL/NTSC) |
MEMORY CARD |
Type: | SD, SDHC, SDXC |
SUPPORTED OPERATING SYSTEM |
PC & Macintosh: | Windows 7 SP1/ Vista SP2/ XP SP3 Mac OS X v10.6 – 10.7 |
SOFTWARE |
Browsing & Printing: | ImageBrowser EX |
Other: | PhotoStitch |
POWER SOURCE |
Batteries: | Rechargeable Li-ion Battery NB-6L (battery and charger supplied) |
A/C Power Supply: | Optional, AC Adapter Kit ACK-DC40 |
PHYSICAL SPECIFICATIONS |
Dimensions (WxHxD): | 106.3 x 61.0 x 32.7 mm |
Weight: | Approx. 231 g (including battery/batteries and memory card) |
