| Type | Single-lens reflex digital camera |
| Lens mount | Nikon F mount (with AF contacts) |
| Effective angle of view | Approx. 1.5 x lens focal length (Nikon DX format) |
| Effective pixels | 16.2 million |
| Image sensor | 23.6 x 15.6 mm CMOS sensor |
| Total pixels | 16.9 million |
| Dust-reduction System | Image sensor cleaning, Image Dust Off reference data (optional Capture NX 2 software required) |
| Image size (pixels) | 4,928 x 3,264 (L) 3,696 x 2,448 (M) 2,464 x 1,632 (S) |
| File format | NEF (RAW): 14 bit, compressed JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats |
| Picture Control System | Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls |
| Media | SD (Secure Digital), SDHC, and SDXC memory cards |
| File system | DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif 2.3 (Exchangeable Image File Format for Digital Still Cameras), PictBridge |
| Viewfinder | Eye-level pentamirror single-lens reflex viewfinder |
| Frame coverage | Approx. 95% horizontal and 95% vertical |
| Magnification | Approx. 0.78 x (50 mm f/1.4 lens at infinity, -1.0m-1) |
| Eyepoint | 17.9 mm (-1.0m-1) |
| Diopter adjustment | -1.7-+0.7 m-1 |
| Focusing screen | Type B BriteView Clear Matte Mark VII screen |
| Reflex mirror | Quick return |
| Lens aperture | Instant return, electronically controlled |
| Compatible lenses | Autofocus is available with AF-S and AF-I lenses. Autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported), and AI-P lenses. Non-CPU lenses can be used in mode M, but the camera exposure meter will not function. *The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster. |
| Type | Electronically-controlled vertical-travel focal-plane shutter |
| Speed | 1/4000 - 30 s in steps of 1/3 or 1/2 EV; Bulb; Time (requires optional ML-L3 remote control) |
| Flash sync speed | X=1/200 s; synchronizes with shutter at 1/200 s or slower |
| Release mode | Single frame, continuous, self-timer, delayed remote, quick-response remote, quiet shutter release |
| Frame advance rate | Up to 4 fps (manual focus, mode M or S, shutter speed 1/250 s or faster, and other settings at default values) |
| Self-timer | 2 s, 5 s, 10 s, 20 s; 1-9 exposures |
| Metering | TTL exposure metering using 420-pixel RGB sensor |
| Metering method | Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses) Center-weighted: Weight of 75% given to 8-mm circle in center of frame Spot: Meters 3.5-mm circle (about 2.5% of frame) centered on selected focus point |
| Range (ISO 100, f/1.4 lens, 20 °C/68 °F) | Matrix or center-weighted metering: 0-20 EV Spot metering: 2-20 EV |
| Exposure meter coupling | CPU |
| Mode | Auto modes (auto; auto, flash off ); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M); scene modes (portrait; landscape; child; sports; close up; night portrait; night landscape; party/indoor; beach/snow; sunset; dusk/dawn; pet portrait; candlelight; blossom; autumn colors; food); special effects modes (night vision; color sketch; miniature effect; selective color; silhouette; high key; low key) |
| Exposure compensation | -5 - +5 EV in increments of 1/3 or 1/2 EV |
| Bracketing | Exposure bracketing: 3 frames in steps of 1/3 or 1/2 EV White balance bracketing: 3 frames in steps of 1 Active D-Lighting bracketing: 2 frames |
| Exposure lock | Luminosity locked at detected value with AE-L/AF-L button |
| ISO sensitivity (Recommended Exposure Index) | ISO 100 - 6400 in steps of 1/3 EV. Can also be set to approx. 0.3, 0.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available |
| Active D-Lighting | Auto, extra high, high, normal, low, off |
| Autofocus | Nikon Multi-CAM 1000 autofocus sensor module with TTL phase detection, 11 focus points (including one cross-type sensor), and AF-assist illuminator (range approx. 0.5-3 m/1 ft. 8 in.-9 ft. 10 in.) |
| Detection range | -1 - +19 EV (ISO 100, 20 °C/68 °F) |
| Lens servo | Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status Manual focus (MF): Electronic rangefinder can be used |
| Focus point | Can be selected from 11 focus points |
| AF-area mode | Single-point AF, dynamic-area AF, auto-area AF, 3D-tracking (11 points) |
| Focus lock | Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button |
| Built-in flash | Auto, portrait, child, close up, night portrait, party/indoor, pet portrait, color sketch: Auto flash with auto pop-up P, S, A, M, food: Manual pop-up with button release |
| Guide Number | Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20 °C/68 °F) |
| Flash control | TTL: i-TTL balanced fill-flash and standard i-TTL flash for digital SLR using 420-pixel RGB sensor are available with built-in flash and SB-900, SB-800, SB-700, SB-600, or SB-400 (i-TTL balanced fill-flash is available when matrix or center-weighted metering is selected) Auto aperture: Available with SB-900/SB-800 and CPU lens Non-TTL auto: Supported flash units include SB-900, SB-800, SB-80DX, SB-28DX, SB-28, SB-27, and SB-22S Distance-priority manual: Available with SB-900, SB-800, and SB-700 |
| Flash mode | Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off |
| Flash compensation | -3 - +1 EV in increments of 1/3 or 1/2 EV |
| Flash-ready indicator | Lights when built-in flash or optional flash unit such as SB-900, SB-800, SB-700, SB-600, or SB-400 is fully charged; blinks for 3 s after flash is fired at full output |
| Accessory shoe | ISO 518 hot-shoe with sync and data contacts and safety lock |
| Nikon Creative Lighting System (CLS) | Advanced Wireless Lighting supported with SB-900, SB-800, or SB-700 as a master flash, or SU-800 as commander; Flash Color Information Communication supported with built-in flash and all CLS-compatible flash units |
| Sync terminal | AS-15 sync terminal adapter (available separately) |
| White balance | Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine tuning. |
| Lens servo | Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F) Manual focus (MF) |
| AF-area mode | Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF |
| Autofocus | Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected) |
| Automatic scene selection | Available in auto and flash off modes |
| Metering | TTL exposure metering using main image sensor |
| Metering method | Matrix |
| Frame size (pixels) and frame rate | 1,920 x 1,080, 30 p/25 p/24 p, high/normal 1,280 x 720, 30 p/25 p/24 p, high/normal 640 x 424, 30 p/25 p, high/normal A frame rate of 30 p (actual frame rate 29.97 fps) is available when NTSC is selected for video mode. 25 p is available when PAL is selected for video mode. Actual frame rate when 24 p is selected is 23.976 fps. |
| File format | MOV |
| Video compression | H.264/MPEG-4 Advanced Video Coding |
| Audio recording format | Linear PCM |
| Audio recording device | Built-in monaural or external stereo microphone; sensitivity adjustable |

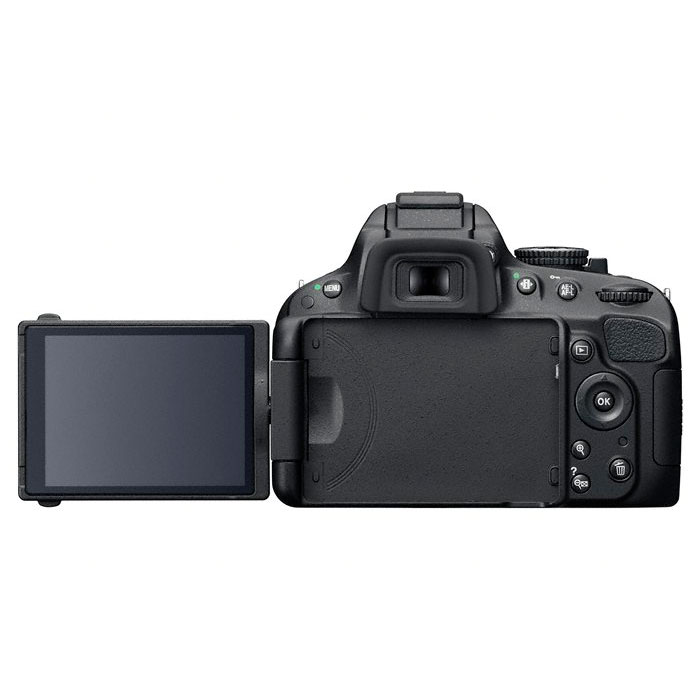

| Monitor | 7.5-cm/3-in., approx. 921k-dot (VGA), vari-angle low-temperature polysilicon TFT LCD with 170 ° viewing angle, approx. 100% frame coverage, and brightness adjustment |
| Playback | Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, slide show, histogram display, highlights, auto image rotation, and image comment (up to 36 characters) |
| USB | Hi-Speed USB |
| Video output | NTSC, PAL |
| HDMI output | Type C mini-pin HDMI connector |
| Accessory terminal | Remote cord: MC-DC2 (available separately) GPS unit: GP-1 (available separately) |
| Audio input | Stereo mini-pin jack (3.5mm diameter) |
| Supported languages | Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish |
| Battery | One rechargeable Li-ion EN-EL14 battery |
| AC adapter | EH-5b AC adapter; requires EP-5A power connector (available separately) |
| Tripod socket | 1/4 in. (ISO 1222) |
| Dimensions (W x H x D) | Approx.128 x 97 x 79 mm (5.0 x 3.8 x 3.1 in.) |
| Weight | Approx. 510 g/1 lb. 2 oz. (camera body only) Approx. 560 g (1 lb. 3.7 oz.) with battery and memory card but without body cap |
| Temperature | 0-40 °C (+32-104 °F) |
| Humidity | Less than 85% (no condensation) |
| Supplied accessories | EN-EL14 rechargeable Li-ion battery (with terminal cover), MH-24 battery charger, AN-DC3 strap, EG-CP14 audio/video cable, UC-E6 USB cable, DK-5 eyepiece cap, BS-1 accessory shoe cover, DK-20 rubber eyecup, BF-1B body cap, ViewNX 2 CD, User's Manual |
