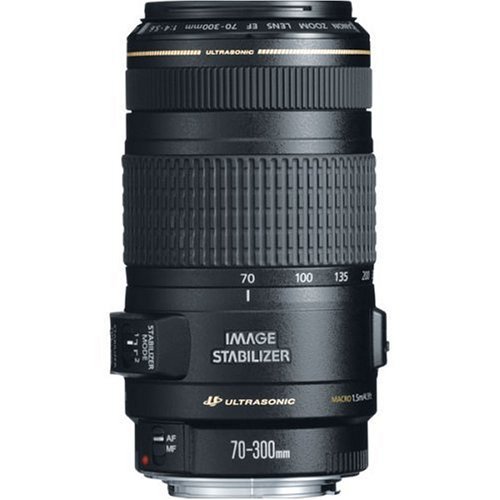

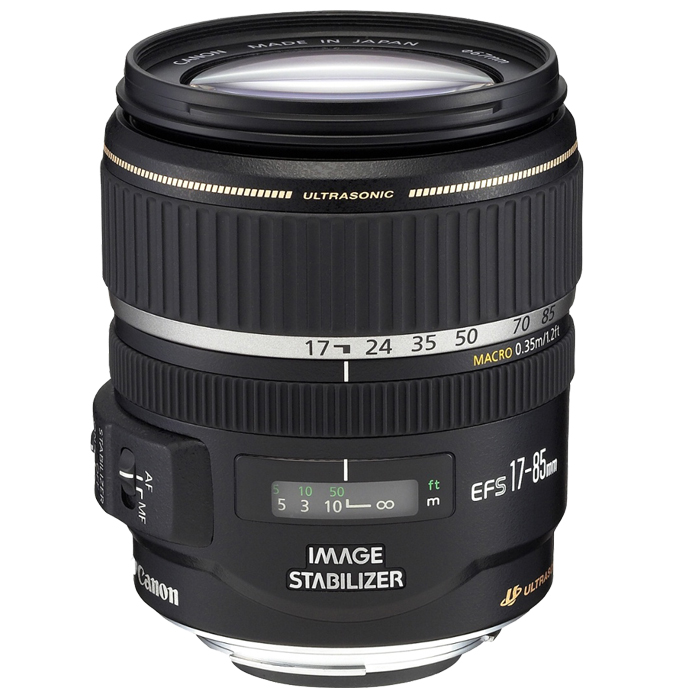

Canon EOS 60D Digital SLR Camera with 17-85 IS Lens and 70-300 IS Lens Kit

22.3mm x 14.9mm CMOS

Approx. 18.00 megapixels

Approx. 19.00 megapixels

3:2

Built-in/Fixed

 EOS integrated cleaning system with fluorine coating

Primary Colour

DIGIC 4

EF/EF-S

Equivalent to 1.6x the focal length of the lens

TTL-CT-SIR with a CMOS sensor

9 cross-type AF points (f/2.8 at centre)

EV -0.5 - 18 (at 23°C & ISO100)

AI Focus, One Shot, AI Servo

Automatic selection, Manual selection

Superimposed in viewfinder and indicated on top LCD panel and Quick Control screen

Yes up to 8m¹

Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.

Intermittent firing of built-in flash or emitted by optional dedicated Speedlite

Selected on lens, default in Live View Mode

No

TTL full aperture metering with 63 zone SPC (1) Evaluative metering (linked to all AF point) (2) Partial metering (approx. 6.5% of viewfinder at centre) (3) Spot metering (approx. 2.8% viewfinder at centre) (4) Centre weighted average metering

EV 0-20 (at 23°C with 50mm f/1.4 lens ISO100)

Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved. Manual: By AE lock button in creative zone modes.

3 Shots +/-3 EV 1/3 or 1/2 stop increments

Auto (100-3200), 100-6400 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 12800

Electronically-controlled focal-plane shutter

30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Auto white balance with the imaging sensor

AWB, Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber +/-9 2. Magenta/ Green +/-9.

Yes, 1 setting can be registered

+/-3 levels in single level increments 3 bracketed images per shutter release. Selectable Blue/Amber bias or Magenta/ Green bias.

Pentaprism

Approx. 96%

Approx. 0.95x¹

Approx. 22mm (from eyepiece lens centre)

-3 to +1 m-1 (dioptre)

Interchangeable (3 types, optional). Standard Focusing Screen Precision Matte Ef-A

Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)

AF information: AF points, focus confirmation light. Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB. Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light. Image information: White balance correction, Card information, monochrome shooting, maximum burst (2 digit display), Highlight tone priority (D+). Composition information: Electronic level (Horizontal only), Battery check

Yes, with Depth of Field preview button.

On strap

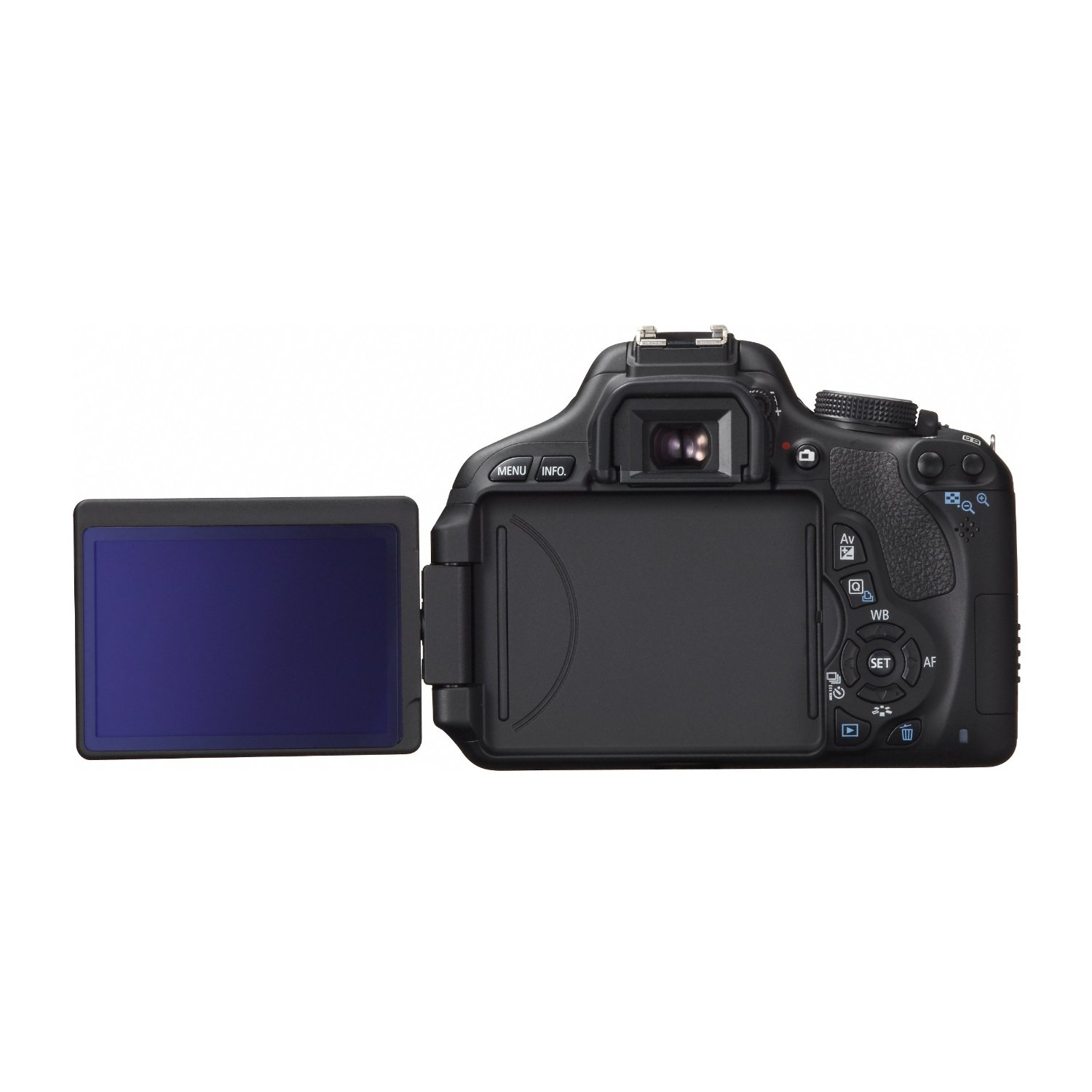

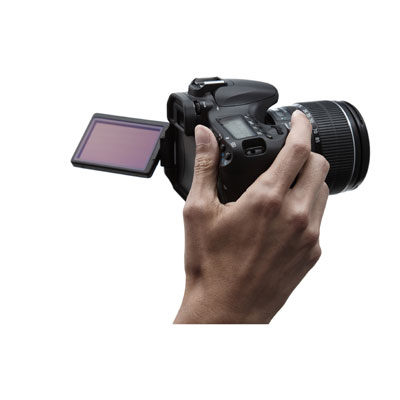

Vari angle 7.7cm (3.0") 3:2 Clear View TFT, approx. 1040K dots

Approx. 100%

Approx 160°

Dual Anti-reflection

Adjustable to one of seven levels

(1) Quick Control Screen (2) Camera settings (3) Electronic Level

13

up to 17mm focal length (35mm equivalent: 28mm)

Approx. 3 seconds

Auto, Manual flash, Integrated Speedlite Transmitter

Yes

1/250sec

+/- 3EV in 1/2 or 1/3 increments

Yes, with compatible External Flash

Yes

Yes

Yes/ No

E-TTL II with EX series Speedlites, wireless multi-flash support

via camera menu screen

Auto, No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, Movie, Program AE , Shutter priority AE, Aperture priority AE, Manual, Custom

Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

sRGB and Adobe RGB

Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings) Auto Correction of Lens Peripheral illumination Basic+ (Shoot by ambience selection, Shoot by lighting or scene type) Creative filters (Grainy B/W, Soft focus, Toy camera, Minaiture effect) - during image Playback only RAW image processing - during image Playback only

Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote)

Max. Approx. 5.3fps. (speed maintained for minimum of approx 58 images (JPEG)¹³, 16 images (RAW)²³

Electronic viewfinder with image sensor

Approx. 100% (horizontally and vertically)

30 fps

Manual Focus (Magnify the image 5x or 10x at any point on screen) Autofocus: Quick mode, Live mode, Live Face detection mode

Real-time evaluative metering with image sensor Active metering time can be changed

Grid overlay (x2), Histogram, Multi aspect ratios, Electronic level

JPEG: Fine, Normal (Exif 2.3 compliant) / Design rule for Camera File system (2.0), RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant

Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.

JPEG 3:2: (L) 5184x3456, (M) 3456x2304, (S1) 2592x1728, (S2) 1920x1280, (S3) 720x480 JPEG 4:3: (L) 4608x3456, (M) 3072x2304, (S1) 2304x1728, (S2) 1696x1280, (S3) 640x480 JPEG 16:9: (L) 5184x2912, (M) 3456x1944, (S1) 2592x1456 (S2) 1920x1080, (S3) 720x400 JPEG 1:1: (L) 3456x3456, (M) 2304x2304, (S1) 1728x1728, (S2) 1280x1280, (S3) 480x480 RAW: (RAW) 5184x3456, (M-RAW) 3888x2592, (S-RAW) 2592x1728

MOV (Video: H.264, Sound: Linear PCM)

1920 x 1080 (29.97, 25, 23.976 fps) 1280 x 720 (59.94, 50 fps) 640 x 480 (59.94, 50 fps)

Max duration 29min 59sec, Max file size 4GB

New folders can be manually created and selected

(1) Consecutive numbering (2) Auto reset (3) Manual reset

20 Custom Functions with 59 settings

User copyright information (can be set in camera) Image rating (0-5 stars)

Yes / Yes

Yes¹

-

Yes

1.5x - 10x

(1) Single image with information (2 levels) (2) Single image (3) 4 image index (4) 9 image index (5) Magnified view

Image selection: All images, by Date, by Folder, Movies, Stills, Rating Playback time: 1/2/3/5/10 or 20 seconds Repeat: On/Of

Brightness: Yes RGB: Yes

Yes

Erase: Single image, All images in folder, Checkmarked images, unprotected images Protection: Erase protection of one image at a time

Original image verification data can be appended to the image (OSK-E3 required for verification)

(1) Shooting menu (x4)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu

English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Update possible by the user.

Hi-Speed USB

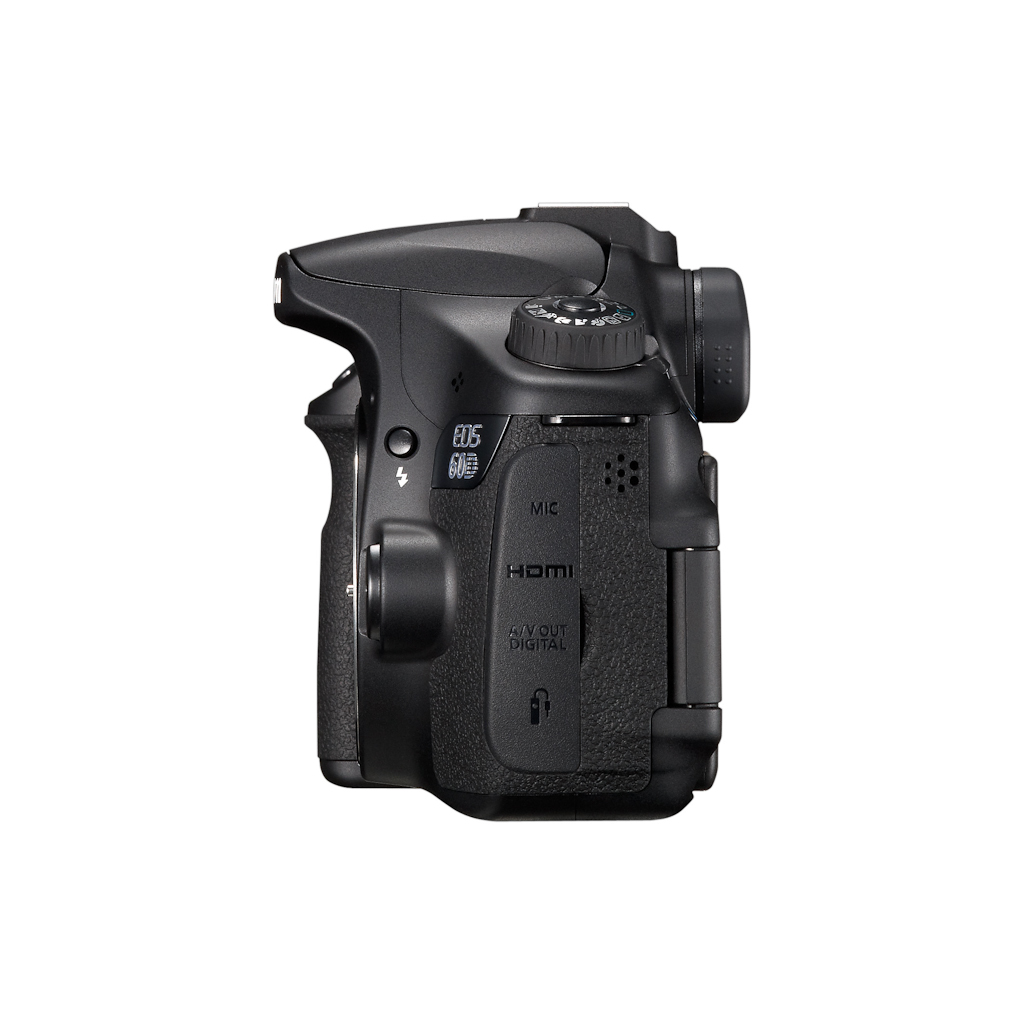

Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack)

Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

Yes

SD card, SDHC card or SDXC card

Windows XP (SP2/SP3) / Vista inc SP1 (excl. Starter Edition) / 7 (excl. Starter Edition) OS X v10.4-10.6

ZoomBrowser EX / ImageBrowser

Digital Photo Professional

PhotoStitch, EOS Utility (inc. Remote Capture, Original Data Security Tools*), Picture Style Editor * Requires optional accessory

Rechargeable Li-ion Battery LP-E6 (supplied), built in for date & settings

Approx. 1100 (at 23°C, AE 50%, FE 50%)¹ Approx. 1000 (at 0°C, AE 50%, FE 50%)

6 levels + percentage

Power turns off after 1, 2, 4, 8, 15 or 30mins.

AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery charger CBC-E6

Aluminium and polycarbonate resin with glass fibre

0 - 40 °C, 85% or less humidity

144.5 x 105.8 x 78.6mm

Approx. 755g (CIPA testing standard, including battery and memory card)

Eyecup Eb, E-series Dioptric Adjustment Lens Focusing Screens Ef (with Grid Ef-D, Super Precision Matte Ef-S), Angle Finder C

Leather case EH21-L

Compatible with Eye-Fi cards

All EF and EF-S lenses

Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2)

BG-E9

Remote Switch RS-60E3, Remote Controller RC-6/RC-1/RC-5

Hand Strap E2

¹ with EF300mm f/2.8L IS USM at 50kph

¹ with 50mm lens at infinity, -1m-1 dpt

¹ Large/Fine(Quality 8) resolution

² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.

³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level

¹ Memory card and battery door only

¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
